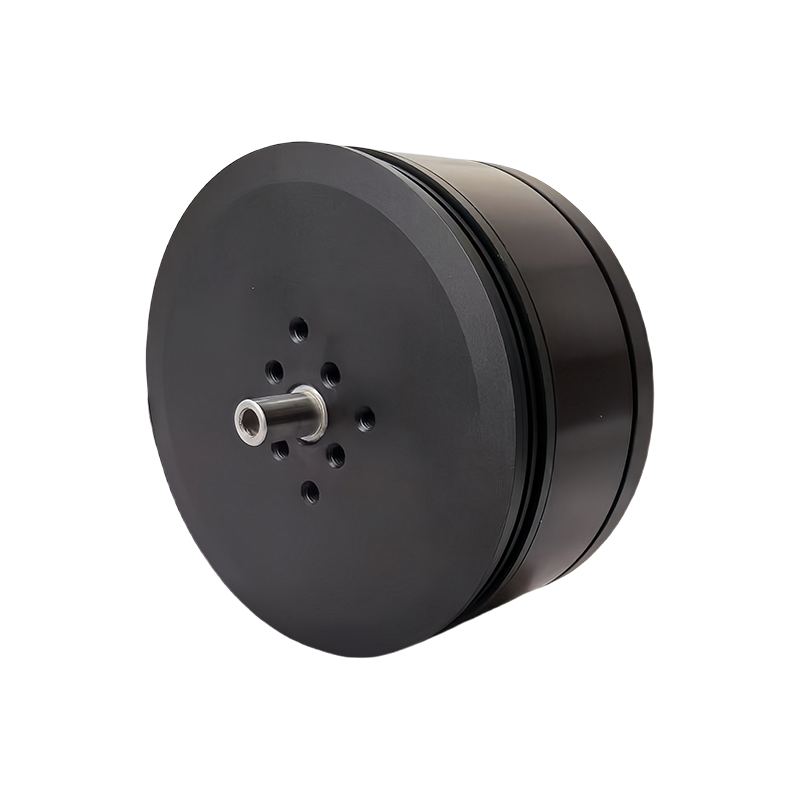

The LN6215 brushless drone motor is a high-performance power solution designed for professional UAVs that require both efficiency and reliability. Compatible with 12S LiPo batteries, this motor comes in 150kV, 160kV, and 170kV options, giving operators the flexibility to optimize for endurance, speed, or payload capacity.
With a maximum thrust of 3kg, the LN6215 delivers stable lift and consistent output, making it suitable for aerial photography drones, mapping drones, inspection UAVs, agricultural spraying drones, and industrial multirotors. Its precision-engineered construction ensures low vibration, smooth rotation, and improved flight stability, even under demanding conditions.
Key advantages include:
High Efficiency – Optimized design reduces energy loss and extends flight time.
Durable Build – Reliable performance with advanced heat dissipation for longer lifespan.
Flexible kV Options – 150kV for long endurance, 160kV for balanced performance, and 170kV for high-speed flights.
Strong Thrust – Up to 3kg of thrust to support various payloads and professional applications.
Whether for surveying, filmmaking, agriculture, or industrial inspections, the LN6215 provides the power and stability needed for professional UAV operations.
Retek
ขอบเขต
ถาม

| Electric Spec. | ||||||||||||||||||||||||||
| KV | Battery Spec. |
Max. Thrust Force (KG) |
Recom.Takeoff Weight (KG) |
System Weight (KG) |
Max. Current (A) |
Max. Con. Current (A) |
Motor Dim. (mm) |
Stator Dim. (mm) |
Mounting Dim. (mm) |
Prop. (inch) |
||||||||||||||||
| 150 | 10S-12S | 12 | 3-5 | 0.32 | 17.2 | 5.5 | φ91*37.5 | φ83*13 | 4-M5*10 | 2480 | ||||||||||||||||
| Thrust Testing Data | ||||||||||||||||||||||||||
|
Propeller (inch) |
Voltages (V) |
Throttle (%) |
Load Currency (A) |
Thrust (g) |
Power (W) |
Efficiency (g/W) |
||||||||||||||||||||
| GF2480 | 46.05 | 40% | 4.6 | 2416 | 212.2 | 13.18 | ||||||||||||||||||||
| 46.04 | 46% | 7.4 | 3377 | 343.8 | 12.16 | |||||||||||||||||||||
| 46.03 | 50% | 9.9 | 4106 | 460.2 | 11.10 | |||||||||||||||||||||
| 46.01 | 56% | 14.1 | 5209 | 653.2 | 10.47 | |||||||||||||||||||||
| 46.04 | 60% | 17.3 | 5947 | 800 | 9.58 | |||||||||||||||||||||
| 46.00 | 66% | 22.6 | 7086 | 1048.3 | 8.88 | |||||||||||||||||||||
| 45.97 | 70% | 26.6 | 7779 | 1230 | 8.35 | |||||||||||||||||||||
| 45.96 | 75% | 32.7 | 9016 | 1514 | 7.73 | |||||||||||||||||||||
| 45.94 | 80% | 37.6 | 9782 | 1742 | 7.30 | |||||||||||||||||||||
| 45.91 | 85% | 39.8 | 10253 | 1830.8 | 6.78 | |||||||||||||||||||||
| 45.89 | 90% | 43.6 | 10731 | 2005 | 6.25 | |||||||||||||||||||||
| 45.84 | 95% | 47.3 | 11232 | 2175.8 | 5.83 | |||||||||||||||||||||
| 45.85 | 100% | 51.8 | 11822 | 2398 | 5.76 | |||||||||||||||||||||
